术前行视力、眼压、B超、UBM、角膜内皮细胞计数等常规检查,并散瞳检查晶状体脱位部位及范围。采用德国蔡司非接触光学相干生物测量(IOL-Master)测量角膜曲率、眼轴长度及计算人工晶状体度数。所有患者术前3 d予左氧氟沙星滴眼液点眼4次/日预防感染,术前1 h予复方托吡卡胺滴眼液散瞳,每15 min 1次,共4次。
Figure 1 Case 1: A 54-year-old male patient with subluxation of the left lens underwent phacoemulsification with scleral suspension of the intraocular lens
(A) The upper suspensory ligament is ruptured and the lens is deflected downward. (B) A viscoelastic agent is injected below the lens to lift the lens upward. (C) Suture 1 is inserted from the 8 point position to the 2 point position using a 2 mL syringe needle. (D) Leave the end of suture 1 outside the inlet and tie the end of suture 2. (E) Pull the knot toward the anterior chamber and pull out the knot from the main incision, and cut the end of suture 1. (F) Tie off the end of suture 1 2mm from the distal end of the front loop for the IOL. (G) Push the IOL into the anterior chamber. (H) Place the IOL behind the lens, leaving the posterior loop outside the primary incision. (I) Tie off the end of the suture 22mm from the distal end of the posterior IOL loop. ( J) Place the IOL completely behind the lens.(K) Move the lens to orthotopic position. (L) Hold the lens in position with 3 iris hooks. (M)Phacoemulsification of the lens. (N) Remove the iris hook. (O) Cut the remaining suspensory ligament residual suspensory ligament and remove the capsular pouch completely. (P) Cut through the anterior vitreous. (Q) The suture needle1 was inserted from the original conjunctival outlet, and Z-shaped suture was performed in the superficial sclera. (R) Needle2 was used to suture the opposite side of the sclera in the same way, alternating the sutures symmetrically on both sides to center the IOL. (S) Suture
main incision.
图 2 病例 2:患者女,53 岁,右眼晶状体半脱位,行人工晶体巩膜悬吊辅助超声乳化术
Figure 2 Case 2: A 53-year-old female patient with subluxation of the right lens underwent phacoemulsification with scleral suspension of the intraocular lense
(A)The lower suspensory ligament is broken, and the lens is upward deviated. (B)The tail of suture1 is attached to the anterior loop of the IOL. (C)The needle1 is inserted from the main incision to the 3 o'clock position. (D)The IOL is pushed into the anterior chamber of the eye. (E)The posterior IOL loop was left outside the primary incision, and the tail of suture 2 was tied to the rear IOL loop. (F)Using the irrigation cannula, the end of needle2 is retracted from the primary incision to the lateral incision. (G)Needle2 is inserted from the lateral incision to the 9 o'clock position. (H)IOL suspension was preliminarily completed. (I,J)Gently press down on the IOL and place it behind the lens. (K)Position the lens with an iris restorer through an incision in the plana of the ciliary body. (L)Superficial scleral Z suture was performed at 9 o 'clock with needle2. (M)The superficial scleral Z suture was performed at 3 o 'clock with needle1, , and IOL was initially fixed. (N)Posterior continuous curvilinear capsulorhexis. (O)Phacoemulsification of the lens. (P)Aspiration of the lens cortex. (Q)Cut the residual suspensory ligament and remove the capsular pouch completely. (R)Cut the anterior vitreous. (S)Complete the remaining steps of the Z suture. (T)Suture main incision.

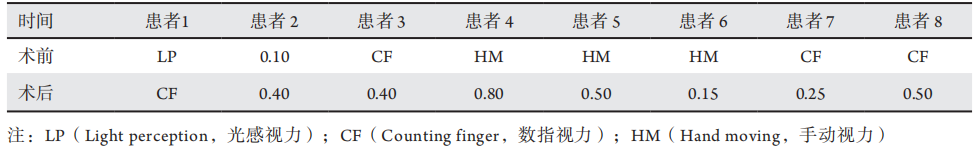

表 1 术前术后裸眼视力对比
Table 1 Comparison of uncorrected visual acuity before and aer operation
1、国家自然科学基金 (82171026),四川省科技厅项目 (2022NSFSC0385)。 This work was supported by The Natural Science Foundation of China (No.82171026) and Project of Sichuan Provincial Department of Science and Technology (2022NSFSC0385).
参考文献
1、Wasiluk E, Krasnicki P, Dmuchowska DA, et al. The implantation
of the scleral-fixated posterior chamber intraocular lens with
9/0 poly propylene sutures-Long-term v isual outcomes and
complications[ J]. Adv Med Sci, 2019, 64(1): 100-103.
3、Kristianslund O, Sandvik GF, Drolsum L. Long-term suture breakage
after scleral fixation of a modified capsular tension ring with
polypropylene 10-0 suture[ J]. Clin Ophthalmol, 2021, 15: 2473-2479.
4、Girard LJ. Pars Plana phacoprosthesis (aphakic intraocular implant): a
preliminary report[ J]. Ophthalmic Surg, 1981, 12(1): 19-22.
5、方健, 张晓丹, 吕红. 晶状体超声粉碎联合玻璃体切除术治疗外
伤性晶状体脱位[ J]. 国际眼科杂志, 2014, 14(12): 2252-2253.
Fang J, Zhang XD, Lü H. Phacofragmentation combined with
vitrectomy in the treatment of traumatic dislocation lens[ J]. Int Eye
Sci, 2014; 14( 12) : 2252 - 2253.
6、郭跃, 郭晓红, 郑丹莹. 现代新式辅助器械在晶状体半脱位手术
治疗中的应用[ J]. 国际眼科纵览, 2013, 37(5): 317-321.
Guo Y, Guo XH, Zheng DY. Application of novel auxiliary apparatus
on the treatment of lenses subluxation[ J]. International Review of
Ophthalmology, 2013, 37(5): 317-321.
7、陈佳惠, 景清荷, 唐雅婷, 等. 囊袋拉钩联合Cionni改良囊袋张力
环在马方综合征晶状体不全脱位手术中的应用[ J]. 中国眼耳
鼻喉科杂志, 2017, 17(5): 333-336.
Chen JH, Jing QH, Tang YT, et al. Application of capsular retractor
combined with Cionni modified capsular tension ring during lens
subluxation surgery in Marfan syndrome[ J]. Chin J Ophthalmol and
Otorhinolaryngol, 2017, 17(5): 333-336.
8、Merriam JC, Zheng L. Iris hooks for phacoemulsification of the
subluxated lens[ J]. J Cataract Refract Surg, 1997, 23(9): 1295-1297.
9、尹利, 曲超. 新式无线结巩膜层间Z字缝合法在人工晶状体悬吊
术中的应用分析[ J]. 实用医院临床杂志, 2020, 17(3): 27-30.
Yin L, Qu C. Applied analysis of new knotless technique for scleral
interlaminar Z-suture in intraocular lens suspension[ J]. Practical
Journal of Clinical Medicine, 2020, 17(3): 27-30.
10、Jin H, Zhang Q, Zhao P, et al. Intrascleral fixation of implantable
polypropylene capsular hook(s) to reconstruct capsular support for
out-of-the-bag intraocular lens fixation in vitrectomized eyes[ J].
Retina, 2022, 42(9): 1816-1821.
11、Chen Z, Zhang M, Deng M, et al. Surgical outcomes of modified
capsular tension ring and intraocular lens implantation in Marfan
syndrome with ectopia lentis[ J]. Eur J Ophthalmol, 2022, 32(2): 924-
932.
12、Khokhar S, Gupta S, Nayak B, et al. Capsular hook-assisted implantation
of modified capsular tension ring[ J]. BMJ Case Rep, 2016, 2016:
bcr2015214274.
13、王洁, 刘七平, 楼辉锋, 等. 晶状体脱位手术治疗的临床分析[ J].
国际眼科杂志, 2020, 20(5): 921-923.
Wang J, Liu QP, Lou HF, et al. Retrospective analysis of surgical
strategies for lens subluxation[ J]. Int Eye Sci, 2020, 20(5): 921-923.
14、郑丹莹, 吴文捷, 杨文辉. 马方综合征晶状体半脱位不同手术方
法的探讨[ J]. 中华显微外科杂志, 2006, 29(4): 315-317.
Zheng DY, Wu WJ, Yang WH. Discussion on dierent surgical methods
of lens subluxation in Marfan syndrome[ J]. Chinese Journal of
Microsurgery. 2006, 29(4): 315-317.
15、Cecchi A, Ogawa N, Martinez HR, et al. Missense mutations in FBN1
exons 41 and 42 cause Weill-Marchesani syndrome with thoracic aortic
disease and Marfan syndrome[ J]. Am J Med Genet A, 2013, 161A(9):
2305-2310.
