A case of interface fluid syndrome following the enhancement surgery after small incision lenticule extraction
关键词
摘要
全文
HIGHLIGHTS
INTRODUCTION
CASE REPORT
The patient underwent a CIRCLE enhancement (cap-to-flap conversion program in the VisuMax platform) surgery 3 months ago for the residual refractive error left by a SMILE surgery 11 months before. Before the CIRCLE enhancement, the refraction was -0.75 -0.50 x 30 in the right eye and -0.75 -0.50 x 165 in the left eye with best-corrected visual acuity (BCVA) of 20/20 in both eyes. The surgery was uneventful and the first day BCVA was 20/25 in both eyes. Tobradex eye drops (tobramycin 0.3%, dexamethasone 0.1%, Alcon) were started every two hours as part of the normal postoperative regimen. Three days later, the BCVA diminished to 20/60 in the right eye and 20/50 in the left eye, with the intraocular pressure (IOP) increased to 20.5 mmHg in the right eye and 21 mmHg in the left eye measured by a non-contact tonometer (NCT) (compared with 17 mmHg the right eye and 16.7 mmHg the left eye before the surgery). TobraDex was replaced by 0.1% fluorometholone, 4 times a day, and 2% carteolol, twice a day was added. At the 1-month postoperative visit, the BCVA remained 20/40 in both eyes and a mild haze could be seen in both eyes under a slit-lamp examination, with IOP of 18 mmHg and 19 mmHg. Brimonidine, 0.2%, and tacrolimus, 0.1%, twice a day were added to carteolol and fluorometholone. Two weeks later, the haze persisted, and the TobraDex ointment was given for presumptive diffuse lamellar keratitis. At the 2-month postoperative visit, the BCVA was decreased to 20/60 in both eyes with the IOP measured by NCT of 25.3 mmHg the right eye and 23 mmHg the left eye. The patient was referred for consultation.
Family history:
No similar disease history of immediate family members, including mother, father, and a brother.Ophthalmic history:
Patient underwent an uneventful SMILE surgery 11 months ago. The preoperative refraction was -7.00 -0.75 x 91 in the right eye and -6.50 -0.50 x 94 in the left eye with BCVA of 20/20 in both eyes. After the surgery, a transient elevated IOP was observed after using Tobradex eye drops for one week with 30.3 mmHg the right eye and 25.7 mmHg the left eye measured by NCT, which decreased to normal after the discontinuation of steroids.Ophthalmological examination:
The visual acuity was 20/125 without improvement by correction in both eyes. IOP measured with NCT was 25.3 mmHg in the right eye and 26.7 mmHg in the left eye, while the pressure was 55.3 mmHg and 47.8 mmHg when measured off the flap using an iCare, nearly 2 mm away from nasal limbal. Slit-lamp examination revealed a shallow fluid interface under the epithelium in both eyes with brown irises (Figure 1). Anterior segment optical coherence tomographic (AS-OCT) image revealed the edematous cornea and a fluid interface between the stromal bed and the flap (Figure 2). The dilated fundoscopy examination was unremarkable.
A, B, E, F: 2 months after CIRCLE enhancement. Slit-lamp photograph showing a prominent flap. The beam focused on the cornea reveals a shallow fluid interface between the stromal bed and the flap (arrow). A & E. magnification 10x; B & F. magnification 45x.
C, D, G, H: After the patient received hypotensive agents for 1 month. Slit-lamp photograph showing a significant resolution of fluid accumulation under the flap. C & G. magnification 10x; D & H. magnification 45x.

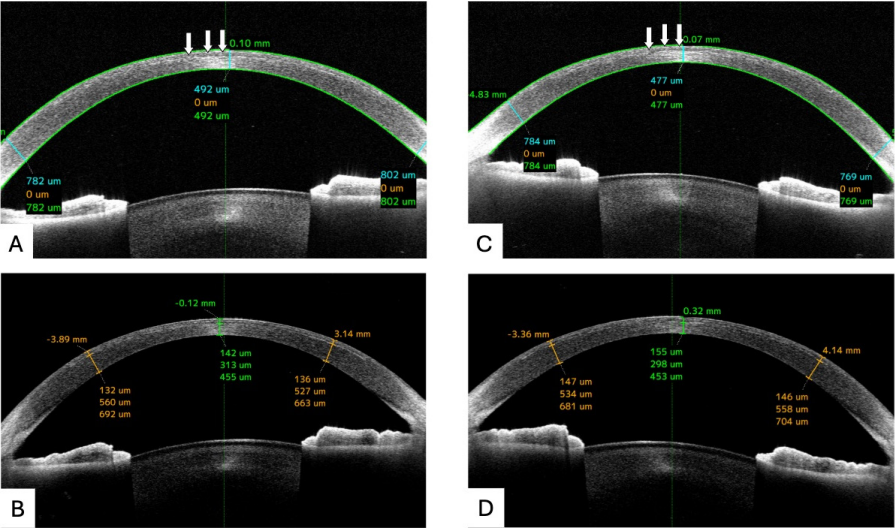

Figure 2 Anterior segment optical coherence tomographic (AS-OCT) image at diagnosis and after 1-month treatment.
Treatment and outcome:
The patient was diagnosed with interface fluid syndrome (IFS) and steroid-induced ocular hypertension in both eyes. Steroids were discontinued immediately. Mannitol, 20%, 250mL, was given intravenously. The patient started oral glycerin, 90mL, twice daily. Azarga (carbonic anhydrase inhibitor brinzolamide, 1%; timolol, 0.5%), brimonidine, 0.2%, bromfenac 0.1%, and tacrolimus, 0.1% were applied in both eyes twice a day. By the third day, BCVA had improved to 20/30 in both eyes. Intraocular pressure using the iCare was 6.0 mmHg centrally and 11.7 mmHg nasally in the right eye; 6.9 mmHg centrally and 15.4 mmHg nasally in the left eye. One month later, the interface fluid had nearly resolved (Figure 1 & 2). The BCVA was 20/30 in both eyes. Three months after treatment, the BCVA was 20/25 in both eyes.IFS is a LASIK flap-associated complication that was first reported by Lyle and Jin in 1999.[2] Awareness of this condition has increased with the growing number of reported cases.[3–5] Most previous reports have documented IFS occurring after LASIK surgery,[6] while a few cases have been reported following SMILE, [5,7,8] bioptics,[9] and surface ablation.[10] Re-treatment rates, or enhancement rates, after LASIK or SMILE range from 5% to 28%.[11–13] Three IFS cases have reported after LASIK enhancement.[14–16] To our knowledge, this is the first case of IFS observed after the CIRCLE enhancement following the SMILE surgery.In our case, moderate edematous abnormalities along the interface wound causing a diffuse smudgy interface haze were observed, corresponding to stage 2 IFS as Dawson et al. classified (Supplemental Figure 1).[3] Clinically, stage 3 IFS can be detected with a careful slitlamp examination, appearing as an optically empty space between the flap and the residual stromal bed. However, stage 1 and 2 IFS could be easy to mistake for the diffuse granular appearance of diffuse lamellar keratitis (DLK), but the treatments of the two diseases are totally distinct. [17] Misdiagnosis of DLK may result in an increased dosage of topical steroids, potentially exacerbating the clinical condition.[16] Severe ocular hypertension, which can be obscured by interface fluid, may persist for an extended period, leading to optic nerve damage and irreversible visual field loss.[5] Our patient shares similar characteristics with previously reported IFS cases following SMILE, including Asian descent, myopia, and darkly pigmented irises. These factors place the patient at higher risk for developing ocular hypertension and IFS.[18]
Our patient experienced decreased vision the day after enhancement and steroid use, presenting earlier the typical onset for IFS. This early presentation is akin to that reported by Miya et al.,[14] where increased IOP and decreased BCAV were noted the day after steroid application (Table 1, Case 2). Typically, IFS manifests between 2 to 4 weeks post-operation, in contrast to the 2 to 5 days associated with DLK. Therefore, in both Case 2 and our case, considering a diagnosis of DLK is understandable. However, patients treated with topical steroids for DLK who do not see improvement within 10 days should be meticulously reassessed for interface fluid.[4]
Table 1. Previous cases of IFS following the enhancement.
|
Case |
Author |
Age(y) |
Sex |
Eye |
The first LASIK |
Cause of IFS |
Symptoms onset |
Treatment |
Outcome |
|||
|
After surgery |
After steroid used |
Resolution period |
Measures |
Visual acuity |
IOP |
|||||||
|
1 |
Russell et al. 2004 1 |
50 |
M |
OD |
UCVA 20/20 |
Steroid-induced elevated pressure |
5 months |
10 days |
3 days |
Steroid cessation + antihypertensive |
1.0 |
18 |
|
OS |
BCVA 20/20 |
Steroid-induced elevated pressure |
5 months |
10 days |
3 days |
1.0 |
18 |
|||||
|
2 |
Miya et al. 2007 2 |
53 |
M |
OD |
Uneventful |
Steroid-induced elevated pressure |
2 weeks |
1 day |
2 weeks |
Steroid cessation + antihypertensive |
UCVA 0.9 |
12 |
|
OS |
Uneventful |
Steroid-induced elevated pressure |
2 weeks |
1 day |
2 weeks |
UCVA 1.2 |
12 |
|||||
|
3 |
Hoffman et al. 2008 3 |
65 |
F |
OD |
- |
Steroid-induced glaucoma, and endothelial dysfunction |
4 years |
Several months |
1 day |
Steroid cessation+ antihypertensive + DSEK + flap elevation |
BCVA 1.0 |
- |
IFS = interface fluid syndrome, LASIK = laser in situ keratomileusis, UCVA = uncorrected visual acuity, BCVA = best-corrected visual acuity, IOP = intraocular pressure.
Reference:
1. Russell GE, Jafri B, Lichter H, Waring GO. Late Onset Decreased Vision in a Steroid Responder After LASIK Associated With Interface Fluid. J Refract Surg. 2004;20(1):91-92. doi:10.3928/1081-597X-20040101-21.
2. Miyai T, Yonemura T, Nejima R, Otani S, Miyata K, Amano S. Interlamellar Flap Edema Due to Steroid-Induced Ocular Hypertension After Laser In SituKeratomileusis. Jpn J Ophthalmol. 2007;51(3):228-230. doi:10.1007/s10384-006-0441-y.
3. Hoffman RS, Fine HI, Packer M. Persistent interface fluid syndrome. J Cataract Refract Surg. 2008;34(8):1405-1408. doi:10.1016/j.jcrs.2008.03.042.
Clinically, steroid-induced IOP elevation is the most common reason of IFS.[5] Other causes of IFS following the refractive surgeries include Posner Schlossman Syndrome,[8] anterior uveitis,[20] Fuchs endothelial dystrophy,[19] traumatic hyphema,[21]Amantadine,[22] and certain procedures such as cataract surgery,[23] vitreoretinal surgery,[24] trabeculectomy,[25]keratoplasty. [26] Our patient had a clear history of steroid use and elevated intraocular pressure, similar to the three previously documented cases of IFS after enhancement (Table 1). Case 3, with the longest duration of topical steroid use, was diagnosed with IFS secondary to steroidinduced glaucoma. IFS persisted due to concurrent endothelial failure. In Cases 1 and 2, symptoms emerged after 10 and 14 days of topical steroid use, respectively. Visual acuity improved significantly upon discontinuation of steroids and commencement of intraocular pressurelowering medications.After SMILE, the connection between the corneal cap and the stromal bed becomes loose, creating a potential space for fluid accumulation. Consequently, the incidence of IFS post-SMILE may be much higher than what is currently reported in the literature.[27] In patients with severe IFS and significant fluid accumulation, IOP tends to be low due to central corneal thinning and the buffering effect of the fluid.[28] Therefore, measuring IOP is critical for diagnosing IFS and differentiating diseases such as DLK, but IOP readings in IFS patients can be inaccurate and falsely low.[6] Ex vivo studies have shown that fluid beneath the corneal flap following keratotomy can significantly decrease IOP measurements, as applanation-based IOP measurement relies on both the thickness of the corneal stroma and the physical integrity of the cornea.[29]
One method to address inaccurate IOP readings is to employ alternative techniques less affected by corneal biomechanical properties and thickness,[30] such as the Tono-Pen and rebound tonometry (iCare).[30-31]Studies suggest that the Tono-Pen and iCare provide more accurate IOP values compared to the ocular response analyzer and Goldmann applanation tonometry, likely due to their smaller contact area with the cornea, which reduces dependency on corneal biomechanical properties. [32]
Another approach is to measure IOP outside the corneal flap. Previous research has shown that the discrepancy between central and peripheral IOP measurements with iCare ranges from -0.34 to 3.1 mmHg.[33-34] In the normal participants, iCare measurements of central IOP compared to nasal and temporal peripheral pressures show slight variations (central: 17.17 mmHg vs. nasal: 16.83 mmHg vs. temporal: 18.57 mmHg).[33] In participants who have undergone LASIK with corneal collagen crosslinking, the peripheral IOP measurements with iCare provide a good estimation of anterior chamber pressure.[34] In our case, we observed a 22 mmHg discrepancy between central and peripheral measurements, similar to previous findings.[2,4,35]
In IFS caused by ocular hypertension, IOP control is the main goal of treatment.[19] For hypertension induced by steroid, the cessation or taper of steroids is imperative. With adjunct topical and systemic hypotensive medication, the condition is usually reversed in 1-2 weeks.[2,19,36] In our case, after one month of treatment, vision acuity is yet fully recover, likely due to the prolonged course IFS. A systematic review indicated that a duration of IFS shorter than one month is associated with a significantly higher likelihood of achieving a final corrected distance visual acuity of 20/25 or better, with an adjusted odds ratio of 7.71 (P = 0.02).[6] At the early stage of our case and similar previous ones,[28,36-37]despite intensifying antihypertensive therapy, the trial use of steroids further exacerbated the symptoms. Additionally, systemic steroid use also worsened symptoms.[4] Therefore, clinicians should be wary or more conservative in reaching for steroids if IFS is possible, especially in those who are sensitive to steroids. Monitoring peripheral IOP is crucial when administering steroids under these conditions.
